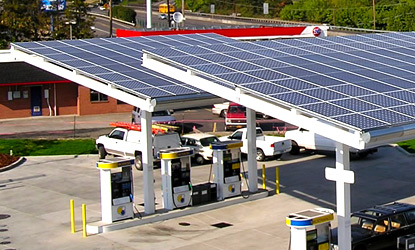

Solar Petrol Pump Solutions
This is the most Effective and Economical solution by using Solar panels, to energies your Petrol pumps with greener energy with uninterrupted power in business hours.
Solar Plant for Petrol Pump offer efficient and economic ways to harness the solar energy to generate electricity.
Small battery which not only operates your petrol pumps throughout the day but also this Grid independent solution allows not to bother about location of your petrol pump site near Grid. No more wasting of time for transmission line at hilly, offline, far flung roads.
-Technical Features for Nozzles & Office Room.- 5Kwp Solar Plant is required
-All the Nozzles of power consumption 0.75HP would be connected with the Solar Power
-4 nozzles can be used at a time
– 8000 Ltrs can be dispensed per day
– 2 Indoor LED Lights (5 watt each) would be provided and connected with the solar system
– 2 Outdoor LED Lights (40 watt each) would be provided and connected with solar system
– Supply of composite capacity Multi crystalline SPV Array of 5000Wp
– Make – Vikram/Equivalent
– Supply of composite complete BOS items like module mounting structure as required at site for holding modules on
structure AJB, MJB, & necessary cables to complete the system wiring, Module Mounting Structure& Control Panel
-Supply of low maintenance, tubular type lead acid battery each of 12 Volt having C/10 rating as per relevant BIS
connected in series in each bank as per specification.
-200 AH (8 Nos) (Make – Southern /Star Battery/ Spark Batteries)
-Supply of charge controller cum inverter, full sine wave output 6KVA (For running nozzles) 230VAC Single phase 50Hz
AC output suitable for both stand alone and hybrid mode of operation along with all protection, controlling
arrangement.(Make-Satcon/Emerson/Agni/MNRE approved)
– 40 Watt LED Outdoor Light 2 Nos.
– 5 Watt LED Light 2 Nos
